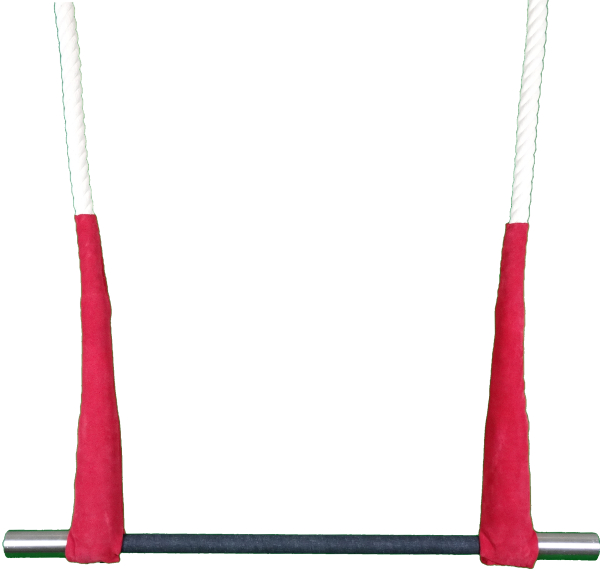

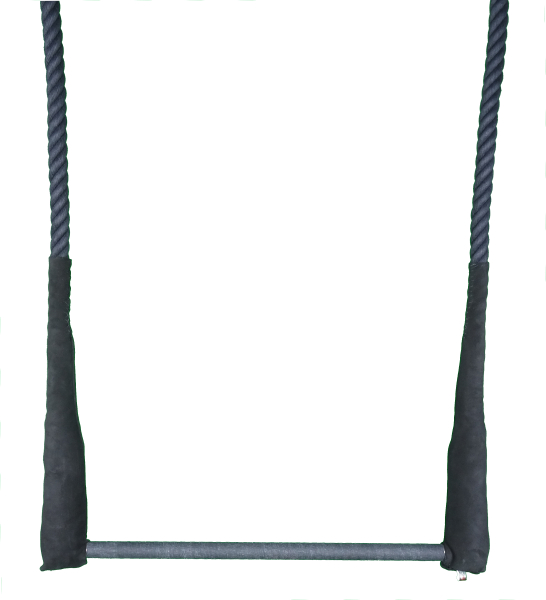

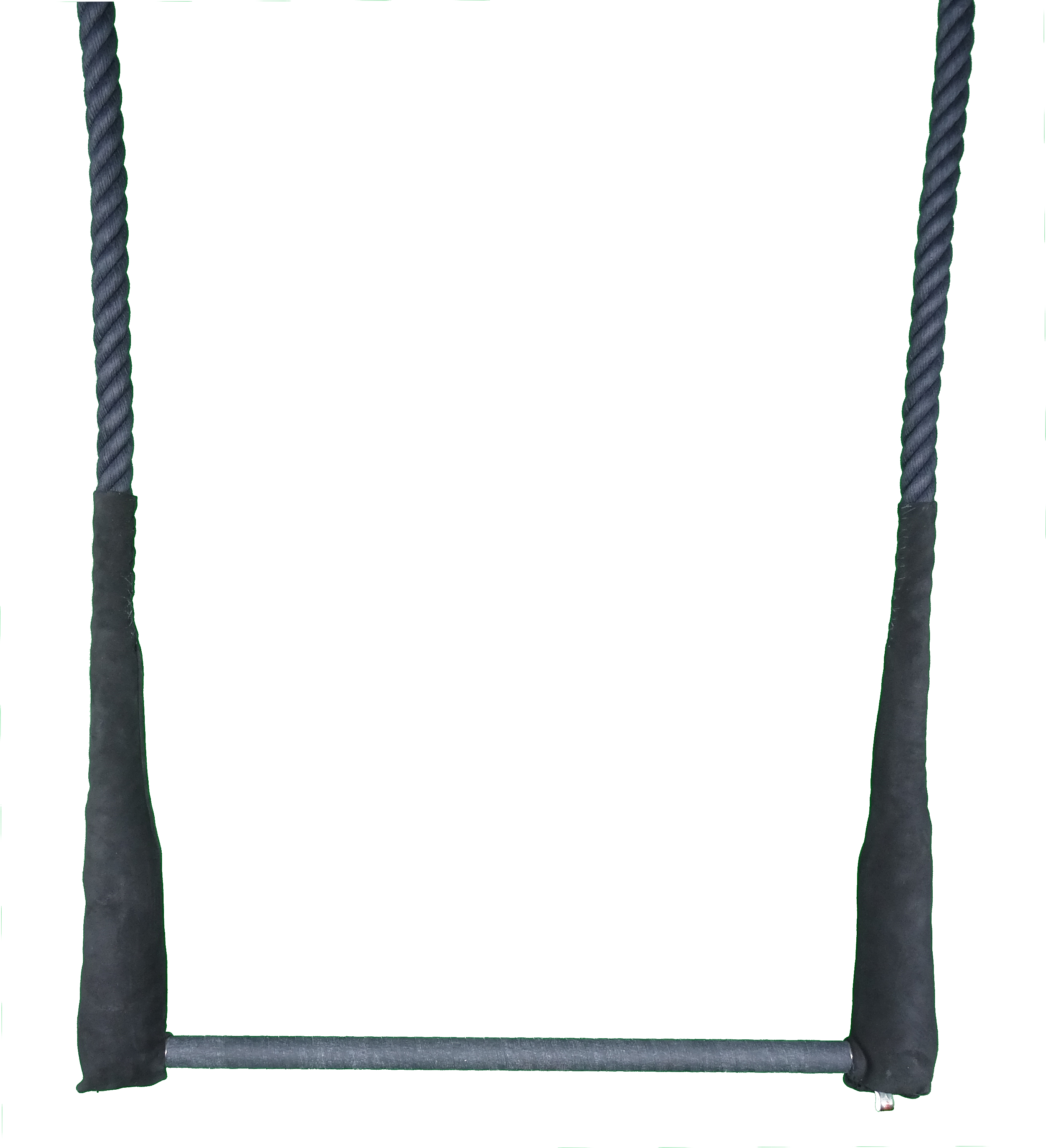

The Dance Trapeze is a highly configurable apparatus for dynamic, flowing and dance-based movement. It always has two suspension points. These can be rigged separately, but for its typical application they are primarily joined at one central anchor point. When combined with a suitable swivel, this configuration allows controlled rotational movement.
At a glance:
Two suspension points, six bar configurations, a 25 mm stainless-steel bar, selectable bar width and rope length, and 24 mm hemp or cotton ropes.
Bar configurations
The bar can be adapted to the intended application in terms of weight, construction and side extensions:
| Configuration | Description |
|---|
| 10 cm stainless-steel weights | Bar with fixed 10 cm weights at both ends |
| Detachable 10 cm stainless-steel weights | Weights can be fitted or removed depending on the intended application |
| 10 cm extensions | Extended working areas measuring 10 cm on each side |
| 12 cm extensions | Extended working areas measuring 12 cm on each side |
| Solid bar | Solid bar configuration without additional side extensions |
| Solid bar with 12 cm extensions | Solid bar with additional 12 cm working areas on each side |
Further configuration options
- Bar widths: 50, 55 or 60 cm
- Rope lengths from 1.10 to 3.50 m
- Natural 24 mm hemp rope
- White or black 24 mm cotton rope

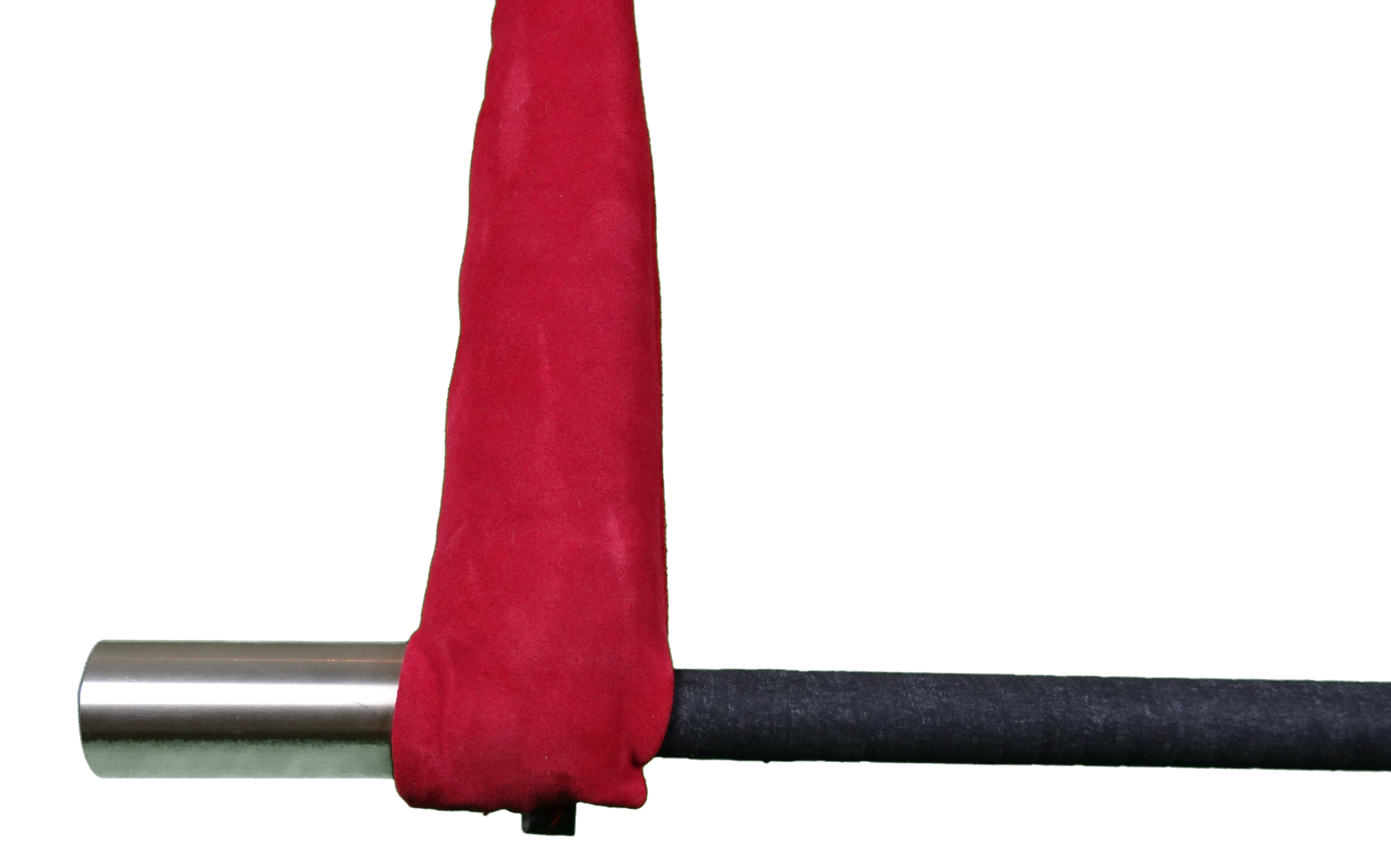

- Classic or braided padding
- Suede covering in different colours, padding without covering or a completely unpadded configuration

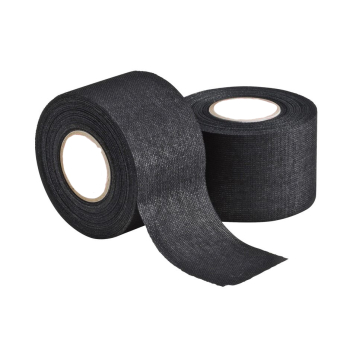

- Bar with black or white tape, or without tape
- Two stainless-steel thimbles forming the upper suspension points
- Not suitable for permanent outdoor installation
Rigging

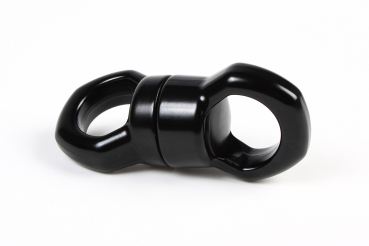

The Dance Trapeze always has two suspension points, irrespective of the final rigging arrangement. For typical rotational use, both suspension points are joined at one central anchor point using suitable connectors. Alternatively, they can be rigged separately at two points. The anchor point, swivel and all connectors must be suitable for the expected static and dynamic loads.
Service life and inspection
- Hemp rope: replace after no more than 3 years or 300 hours of use
- Cotton rope: replace after no more than 3 years or 450 hours of use
- Inspect the trapeze, ropes, connections and suspension system before every use
- Carry out a comprehensive documented inspection at least every six months
- Immediately remove the equipment from service if wear, damage, deformation or an unclear history is identified
Safety and installation
Important: Aerial acrobatics involve a risk of injury. The supporting structure, anchor points and installation must be assessed by a competent person for the static and dynamic loads expected during use.
- Always use a suitable crash mat or aerial-arts landing mat
- Learn new skills only under the guidance of a qualified instructor
- Children must train under the direct supervision of an adult
- Use only compatible and suitably rated connectors
- Do not train above or immediately next to obstacles
Documents and downloads
Product images may show different configurations. The options selected in the shop determine the supplied product.
Alexander Aerial Acrobatics
Owner: Alexander Hinze
Sorbenstr. 19
12524 Berlin, Germany
Email: info@trapeze-shop.com
Safety and Warning Instructions
- Target Audience: This prop is suitable for all age groups and skill levels, from hobbyists to professionals.
- Usage Duration:
- Hemp rope: 3 years or 300 hours.
- Cotton rope: 3 years or 450 hours.
- Usage Area: Not suitable for permanent outdoor use. For outdoor applications, the special outdoor trapeze is recommended.
- Storage:
- The trapeze must be stored in a dry place to prevent damage from moisture and mold.
- Avoid direct sunlight and extreme temperature fluctuations.
- Maintenance and Care:
- Regularly inspect all components for wear and damage.
- Replace any damaged parts or parts that have exceeded the recommended usage duration.
- Safety Instructions:
- Inspect for damage before each use.
- Installation should only be carried out by qualified personnel or under expert guidance.
- Ensure that the mounting points are sufficiently strong and suitable for the intended loads.
- Only use compatible and certified accessories for mounting.
- Avoid sharp edges or abrasive surfaces in contact with the ropes.
- Always use a suitable mat underneath to prevent injuries in case of falls.
- Children should only use the trapeze under adult supervision.
- Disclaimer: The manufacturer accepts no liability for damage caused by improper installation, use, or maintenance.
