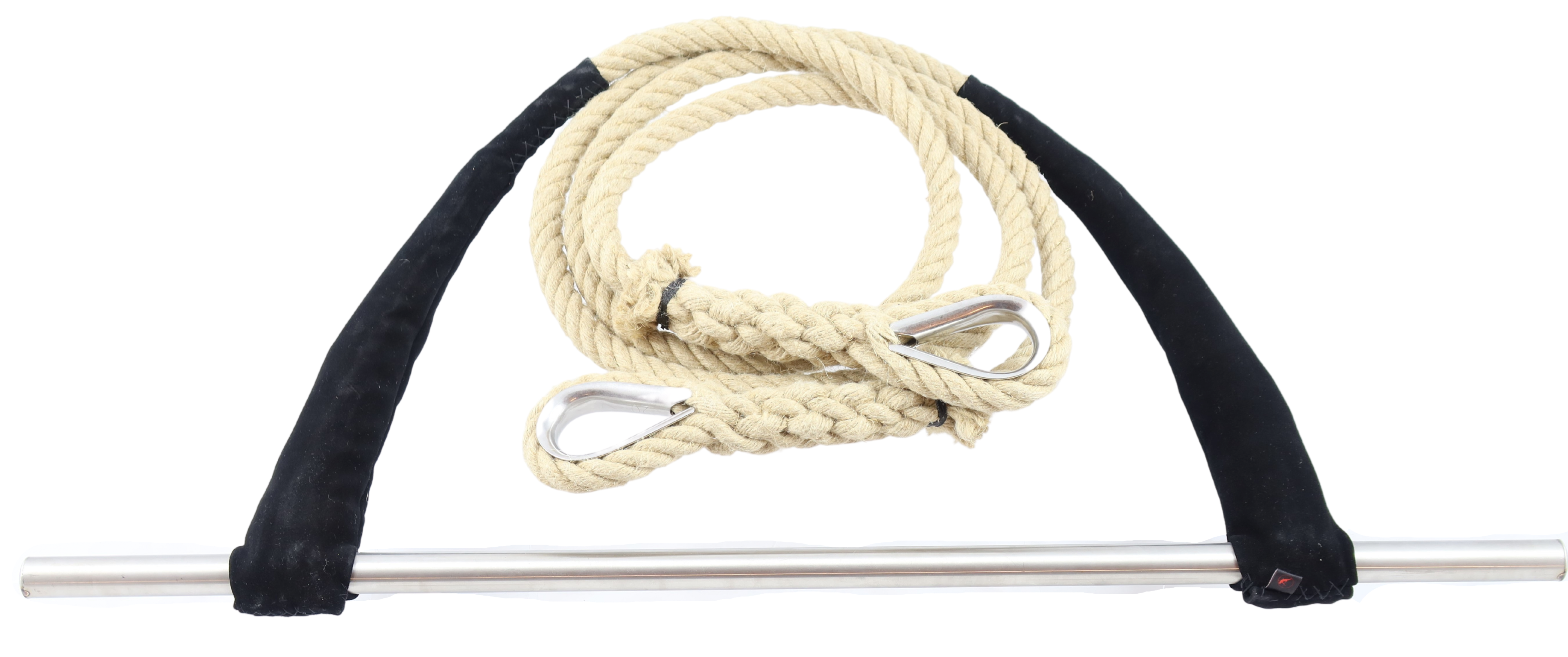

The Duo Trapeze is designed specifically for partner acrobatics and work outside the ropes. The stainless-steel bar extends 15 cm beyond the ropes on each side. These extensions can be shortened on request.
At a glance:

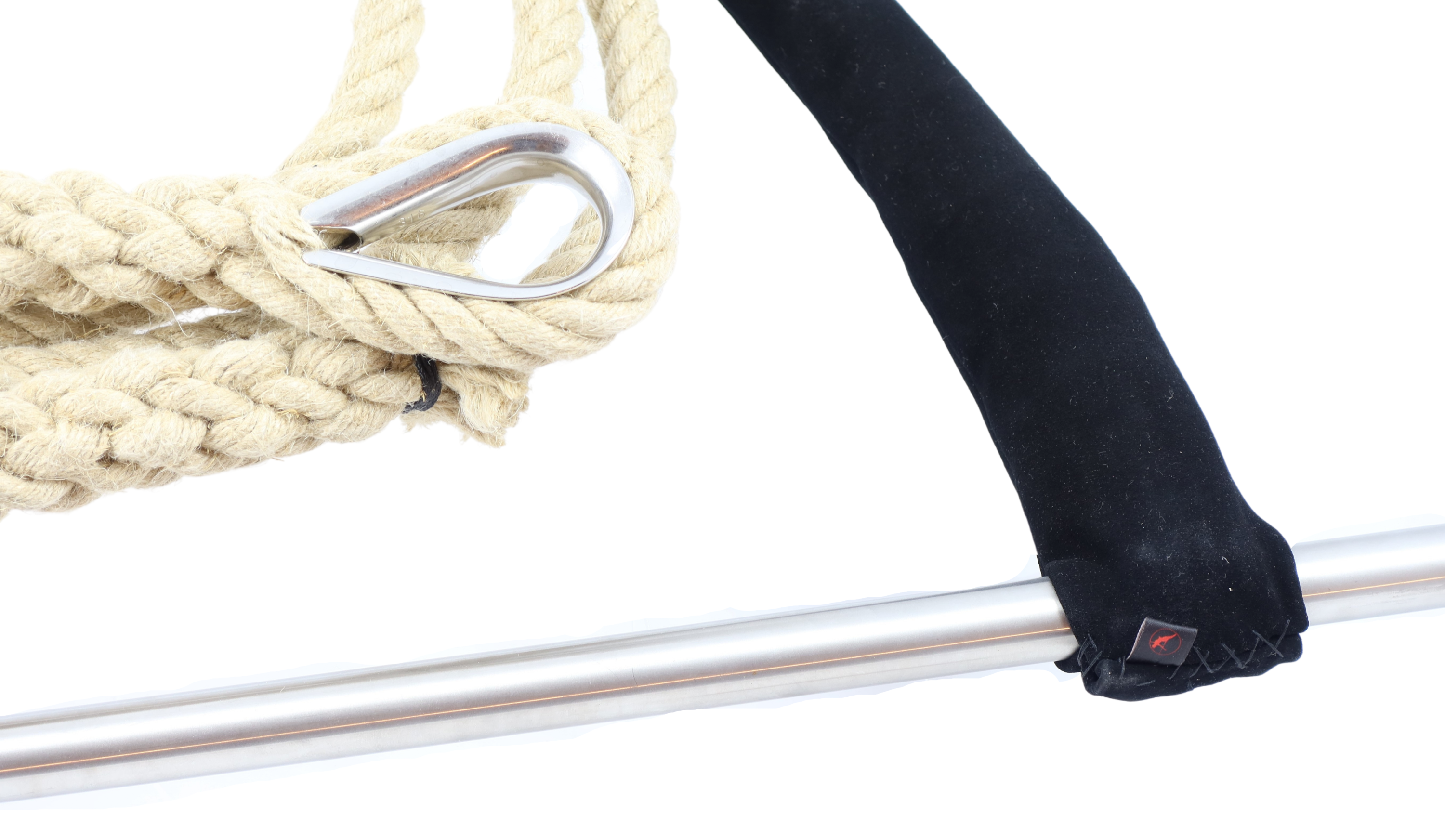

26.9 mm stainless-steel bar, 15 cm extension on each side, padded lower rope sections and 24 mm hemp or cotton ropes.
Product features
- Stainless-steel bar with a diameter of 26.9 mm
- 15 cm extension on each side; shorter extensions available on request
- Padded lower rope sections with a selectable cover fabric
- Natural 24 mm hemp rope or 24 mm cotton rope
- Selectable bar width, rope length and tape colour
- Stainless-steel thimbles at the upper rope ends
- Not suitable for permanent outdoor installation
Documented load data
| Rope option | Breaking load | Maximum user weight stated in the manual |
|---|
| 24 mm hemp rope | 2,400 kg | 171 kg |
| 24 mm cotton rope | 2,200 kg | 157 kg |
The stated user weights are based on the documented rope breaking loads and the safety factor of 14 specified in the manual. Correct rigging, suitably rated anchor points and compatible connectors are required.
Connectors used with this model must have a minimum breaking strength of 26 kN.
Service life and inspection
- Hemp rope: replace after no more than 3 years or 300 hours of use
- Cotton rope: replace after no more than 3 years or 450 hours of use
- Inspect the trapeze, ropes, connections and suspension system before every use
- Carry out a comprehensive documented inspection at least every six months
- Immediately remove the equipment from service if wear, damage, deformation or an unclear history is identified
Safety and installation
Important: Aerial acrobatics involve a risk of injury. The supporting structure, anchor points and installation must be assessed by a competent person for the static and dynamic loads expected during use.
- Always use a suitable crash mat or aerial-arts landing mat
- Learn new skills only under the guidance of a qualified instructor
- Children must train under the direct supervision of an adult
- Use only compatible and suitably rated connectors
- Do not train above or immediately next to obstacles
Documents and downloads
Product images may show different configurations. The options selected in the shop determine the supplied product.
Alexander Aerial Acrobatics
Owner: Alexander Hinze
Sorbenstr. 19
12524 Berlin, Germany
Email: info@trapeze-shop.com
Safety and Warning Instructions
- Target Audience: This prop is suitable for all age groups and skill levels, from hobbyists to professionals.
- Usage Duration:
- Hemp rope: 3 years or 300 hours.
- Cotton rope: 3 years or 450 hours.
- Usage Area: Not suitable for permanent outdoor use. For outdoor applications, the special outdoor trapeze is recommended.
- Storage:
- The trapeze must be stored in a dry place to prevent damage from moisture and mold.
- Avoid direct sunlight and extreme temperature fluctuations.
- Maintenance and Care:
- Regularly inspect all components for wear and damage.
- Replace any damaged parts or parts that have exceeded the recommended usage duration.
- Safety Instructions:
- Inspect for damage before each use.
- Installation should only be carried out by qualified personnel or under expert guidance.
- Ensure that the mounting points are sufficiently strong and suitable for the intended loads.
- Only use compatible and certified accessories for mounting.
- Avoid sharp edges or abrasive surfaces in contact with the ropes.
- Always use a suitable mat underneath to prevent injuries in case of falls.
- Children should only use the trapeze under adult supervision.
- Disclaimer: The manufacturer accepts no liability for damage caused by improper installation, use, or maintenance.
